    CLEO™ Q16

    Technical Data Image
    CLEO™ Q16

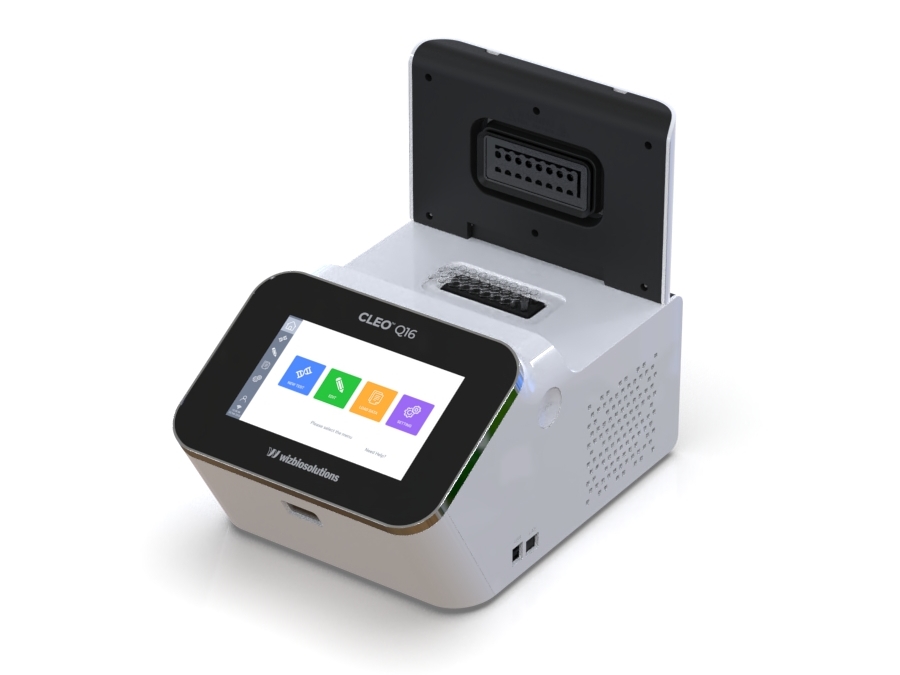

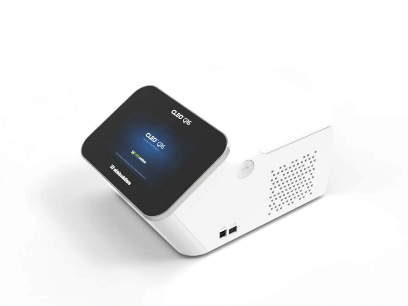

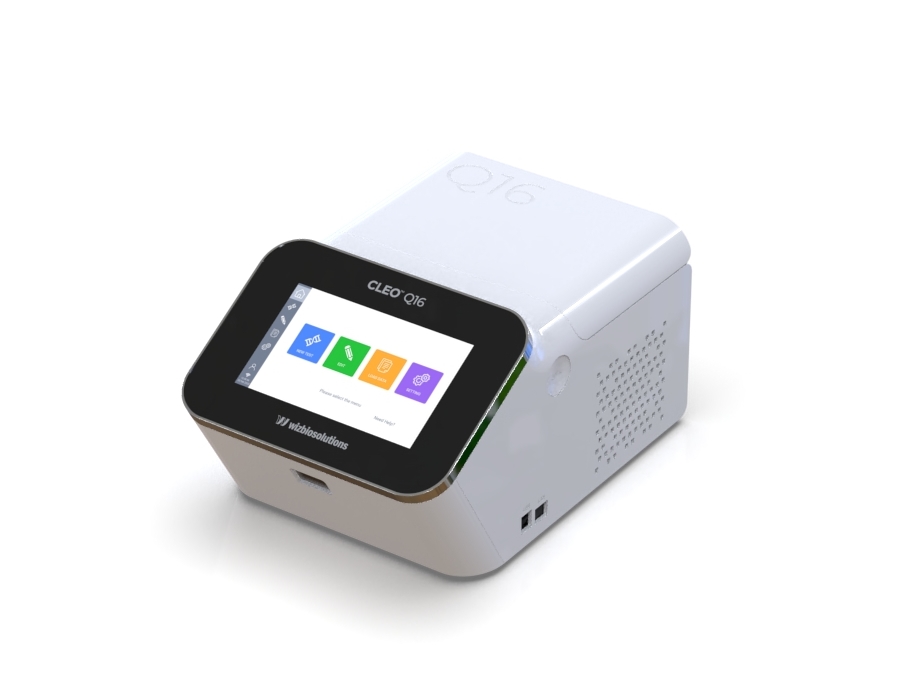

    he CLEO™ Q16 system sets a new standard in real-time fluorescence PCR testing — combining speed, accuracy, and simplicity. Capable of analyzing a wide variety of samples, it delivers both quantitative and qualitative results in record time. With powerful features such as melting curve analysis and genotyping, the CLEO Q16 enables laboratories to achieve faster, more reliable outcomes, streamline workflows, and deliver greater diagnostic confidence.
    Catalog Package
    CL0016 1 system

  • Related Products

    • Overview
      • Compact Design: Real-time PCR system supporting up to 16 tests per run.
      • User-Friendly Software: Simple and intuitive operation.
      • 4-Channel Detection: Multiplex capability with FAM, HEX, ROX, and Cy5.
      • High-Speed Precision: Accurate temperature control for reliable results.
      • Built-In Analysis: Automated result interpretation.
      • Advanced Applications: Supports Melting Curve Analysis for genotyping and mutation detection.
      • MFDS Approval.
      • CE-IVD Marking.
      • ANVISA registered.
    • Specifications
      Test Capacity 16 Tests (8 tubes X 2)
      Detection Channel 4-Channel (FAM, HEX, ROX, Cy5)
      Heating / Cooling rate Heating rate : >7°C/s, Cooling rate : >7°C/s
      Operating System Android OS
      Detection Twin optical modules scan all holes
      Temperature Accuracy ≤ ±0.5°C
      Test ID and Sample ID Input QR code scan
      Display 7-inch full-color HD LCD capacitive touchscreen
      Input power / Max power 100 - 240 VAC (50/60 Hz) / 300W
      Dimensions (LxWxH) 280 × 220 × 180 mm (11.0″ x 8.6″ x 7.0″)
      Weight 4.12 kg (145 oz)
