    WizDx™ RSV CrystalMix PCR Kit

    Technical Data Image
    WizDx™ RSV CrystalMix PCR Kit
    WizDx™ RSV CrystalMix PCR Kit is intended to be used to achieve qualitative detection of Respiratory Syncytial Virus extracted from nasopharyngeal swabs, oropharyngeal swabs, and sputum from patients.
    Catalog Package
    DX1119 96 tests

  • Related Products

    • Overview
      • Simple procedures for RSV diagnosis with ready-to-use reagents that assure high specificity & sensitivity
      • Hot-start PCR technology minimizes non-specific PCR reactions and increases specificity.
      • Ready-to-use freeze-dried PCR mix allows convenient storage and a minimal test procedure.
      • Internal cellular control helps prevent false negatives.

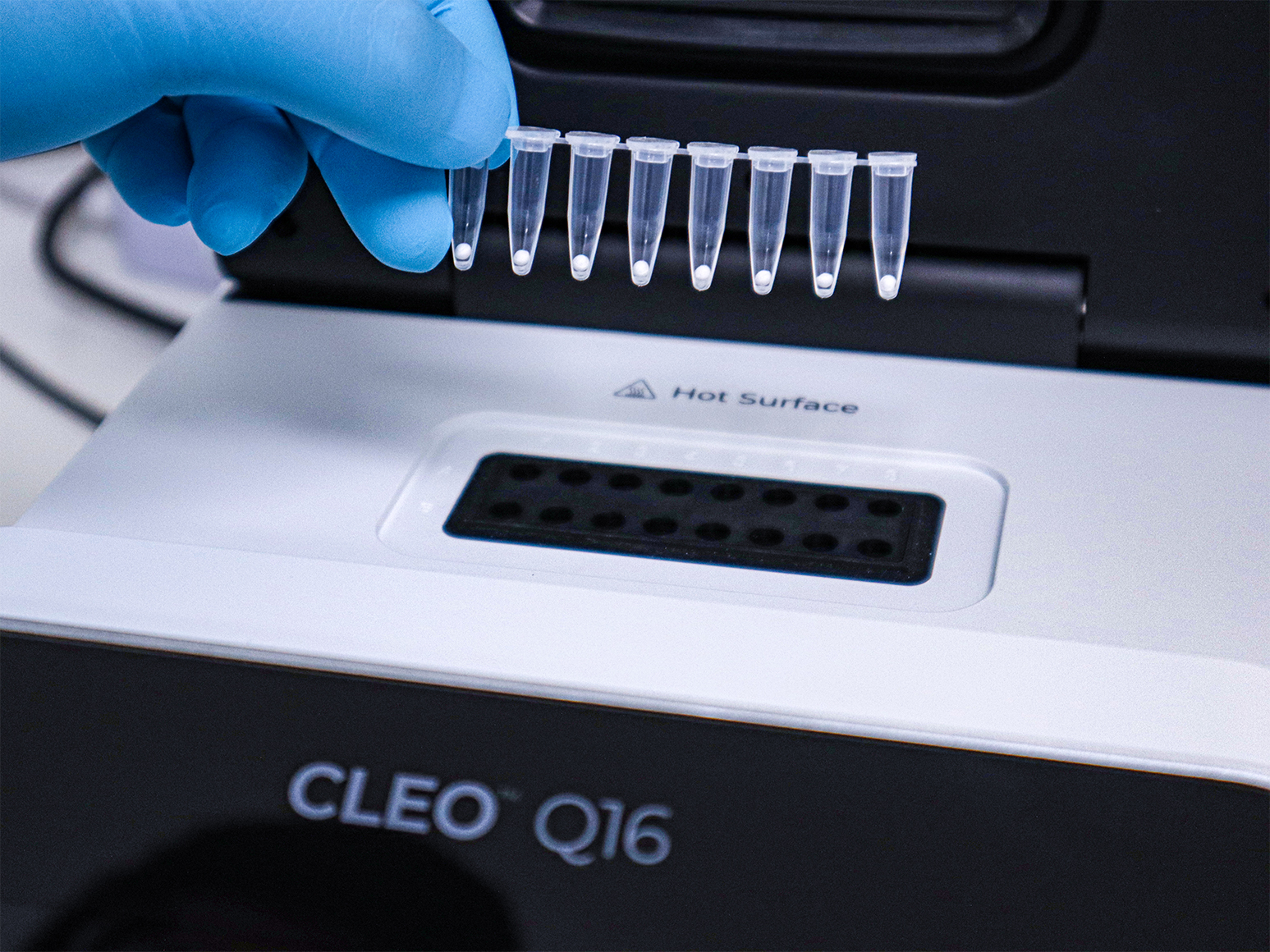

      • Using CLEO Q16, the PCR setup can be easily set up with QR code recognition, and test results can be automatically analyzed based on AI, allowing for quick and intuitive confirmation of results.
    • Specifications
      Test Capacity Real time PCR
      Detection Channel FAM for RSV, Cy5 for Control
      Heating / Cooling rate 96 tests/kit

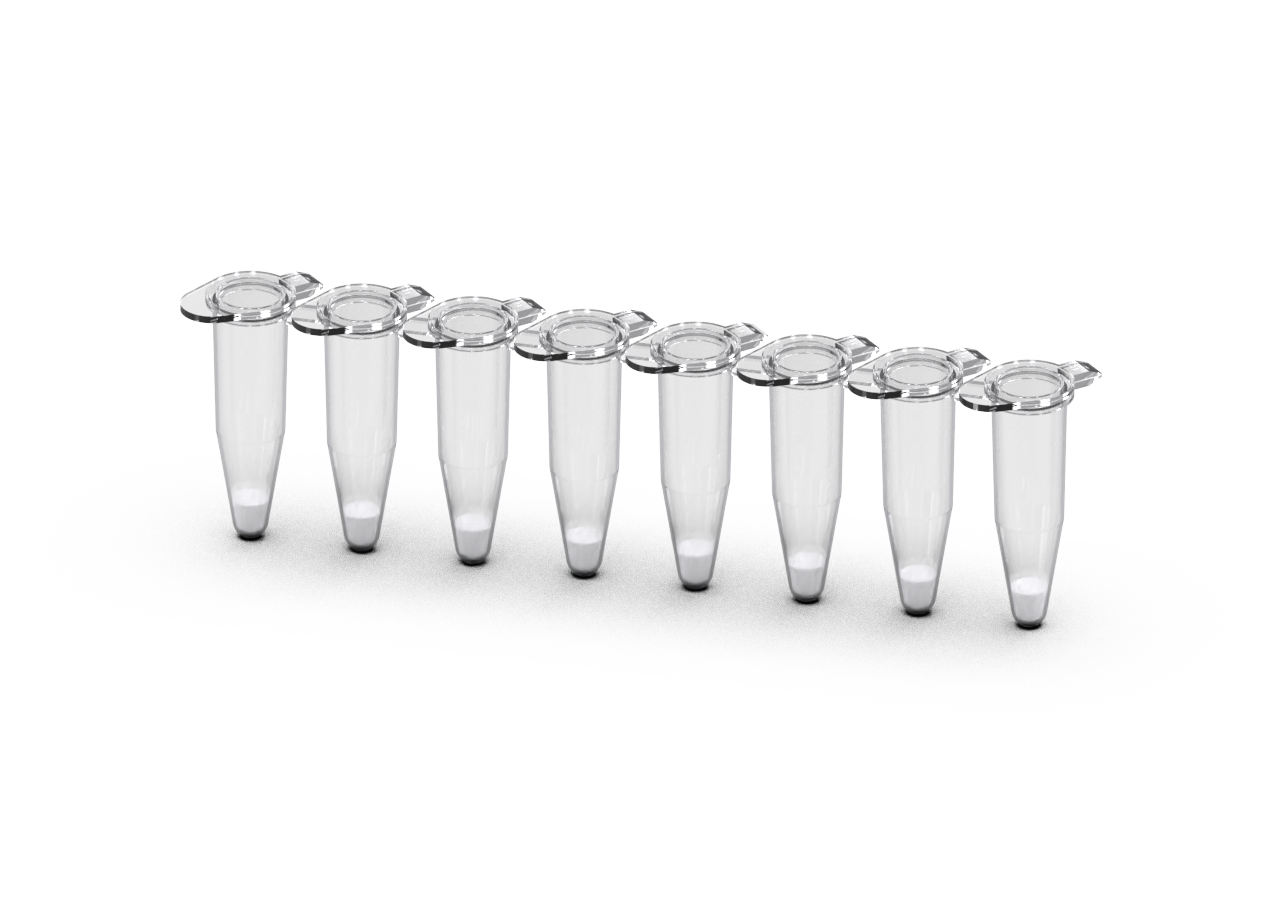

      Operation System Lyophilized (Freeze-dried) in PCR tube
      Detection 5 copies/μL
      Temperature Accuracy Respectively detect the reference specimen of high and low concentrations in different time ranges-10 times, and the precision values of intra-assay and inter-assay Ct values were all <1.5%.
      Test ID and Sample ID Input Analytical specificity was evaluated for cross-reactivity by examining relevant pathogens and microorganisms likely to be present in the respiratory tract. The test was repeated three times and showed no cross-reactivity.
      Display Sputum, oropharyngeal swab, and nasopharyngeal swab samples
      Input power/Max power Shipping and Storage at room temperature for 12 months
      Dimensions CLEO™ Q16 (Wizbiosolutions), CFX96 (Bio-Rad), QuantStudio™ 5 (ThermoFisher)

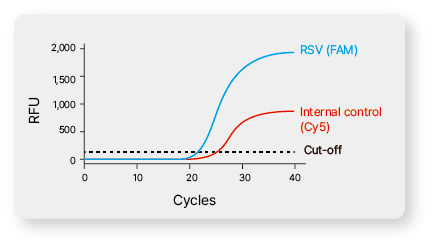

    • Technical Data
      Technical Image

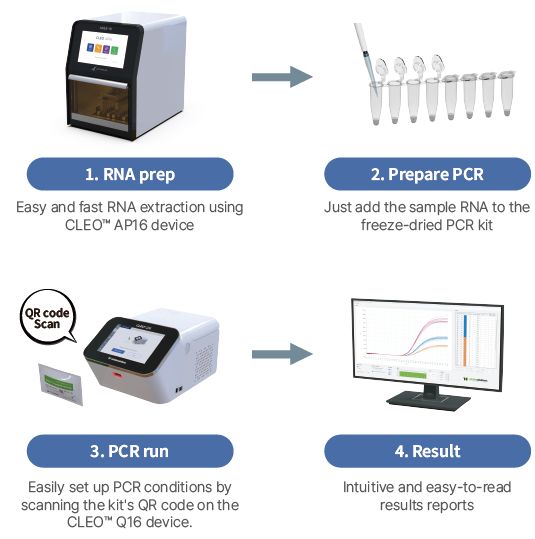

    • Protocol
      WizDx™ RSV CrystalMix PCR Kit
    • Storage & Shipping
      • Room temperature (4~25℃)
