    WizDx™ CrystalMix HPV 16/18

    Technical Data Image

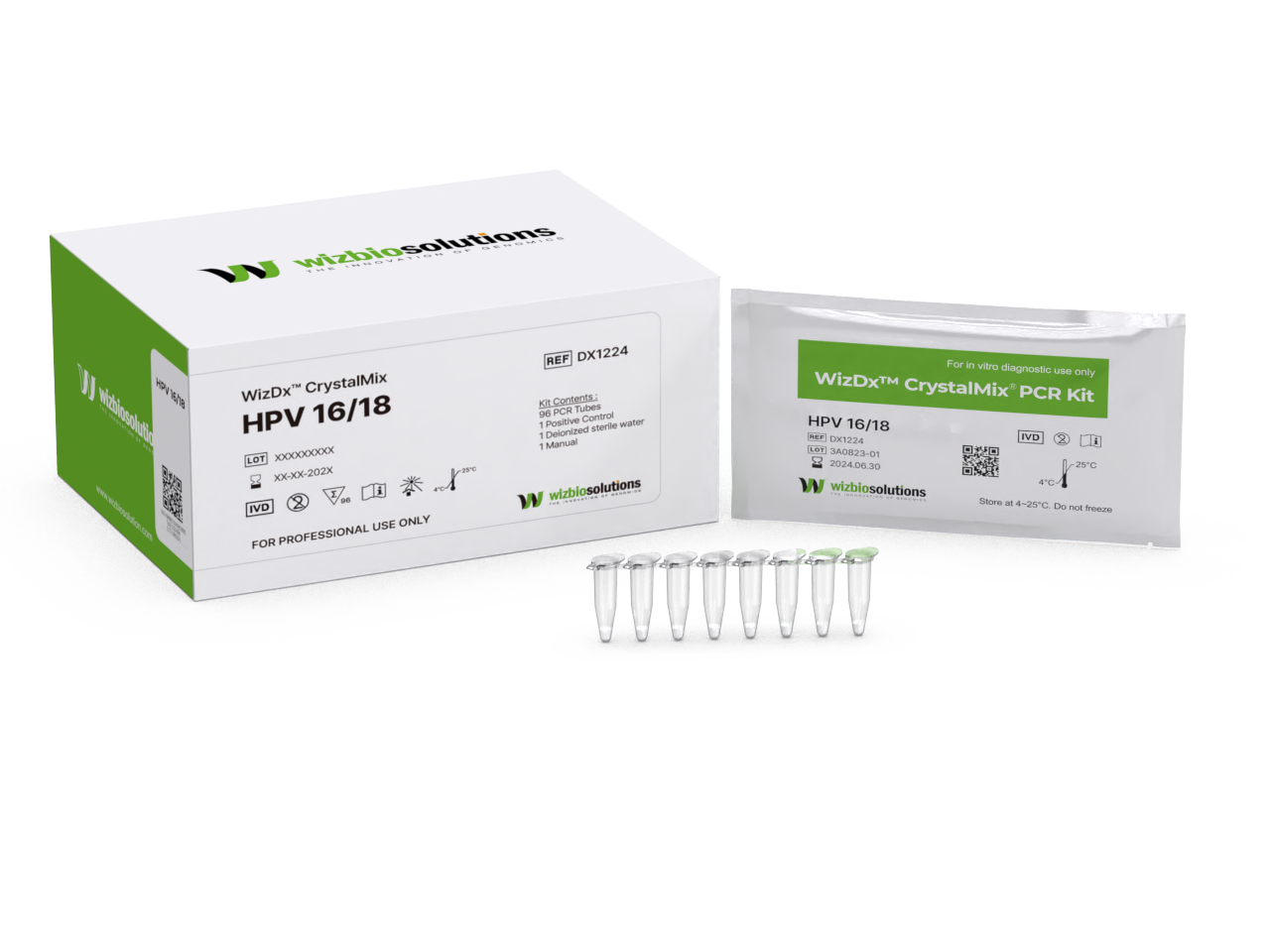

    WizDx™ CrystalMix HPV 16/18
    WizDx™ CrystalMix HPV 16/18 kit is an in vitro diagnostic multiplex real-time PCR test for the qualitative detection of DNAs from Human Papillomavirus type 16 and 18 in cervical, vaginal, and genital specimens of patients.
    Catalog Package
    DX1224 96 tests

  • Related Products

    • Overview
      • Simple procedures for Human Papillomavirus type 16 and 18 diagnosis with ready-to-use reagents that assure high specificity & sensitivity.
      • Hot-start PCR technology minimizes non-specific PCR reactions and increases specificity.
      • Uracil-DNA glycosylase (UDG) technology prevents carryover contamination.

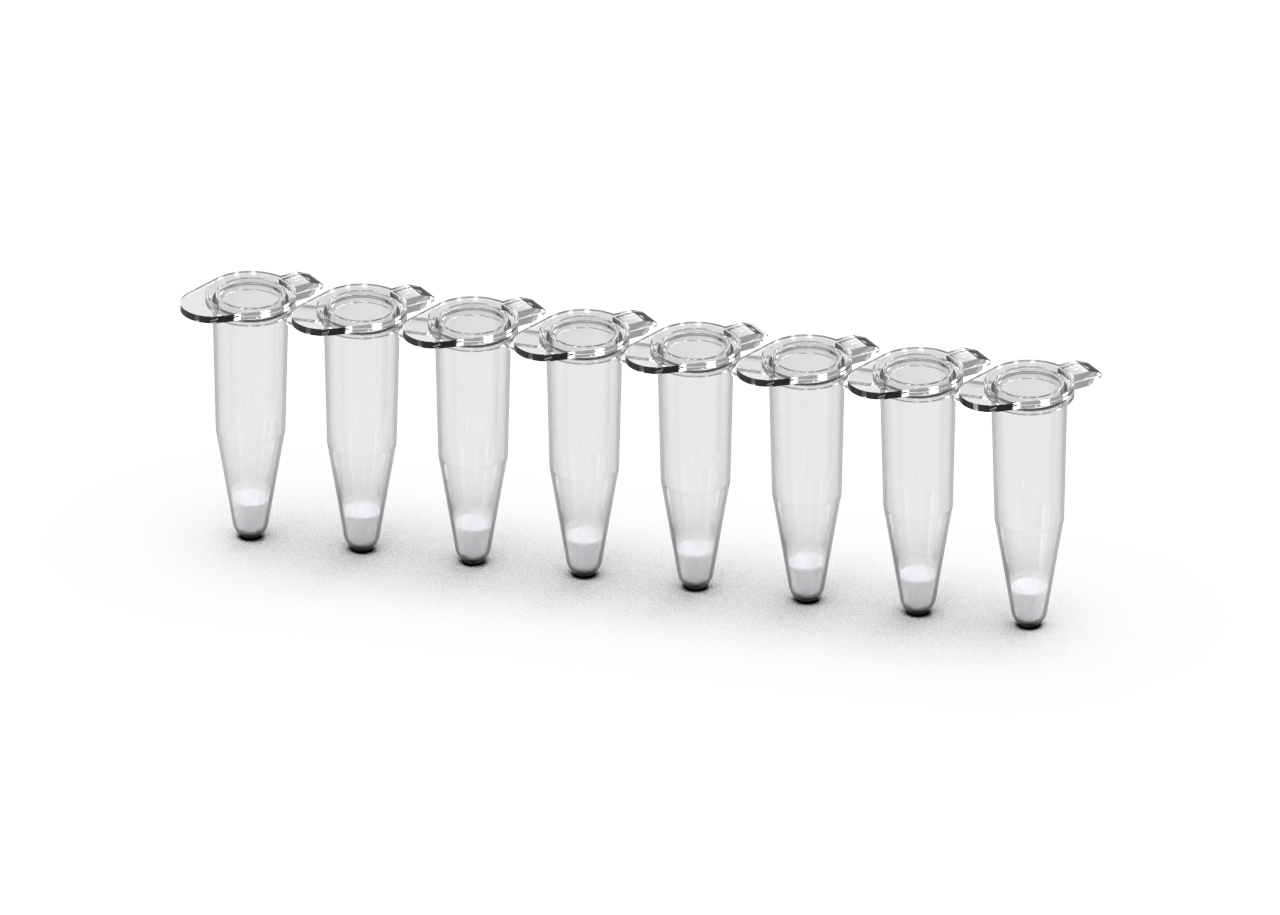

      • Ready-to-use freeze-dried PCR mix allows convenient storage and a minimal test procedure.
      • Internal cellular control helps prevent false negatives.

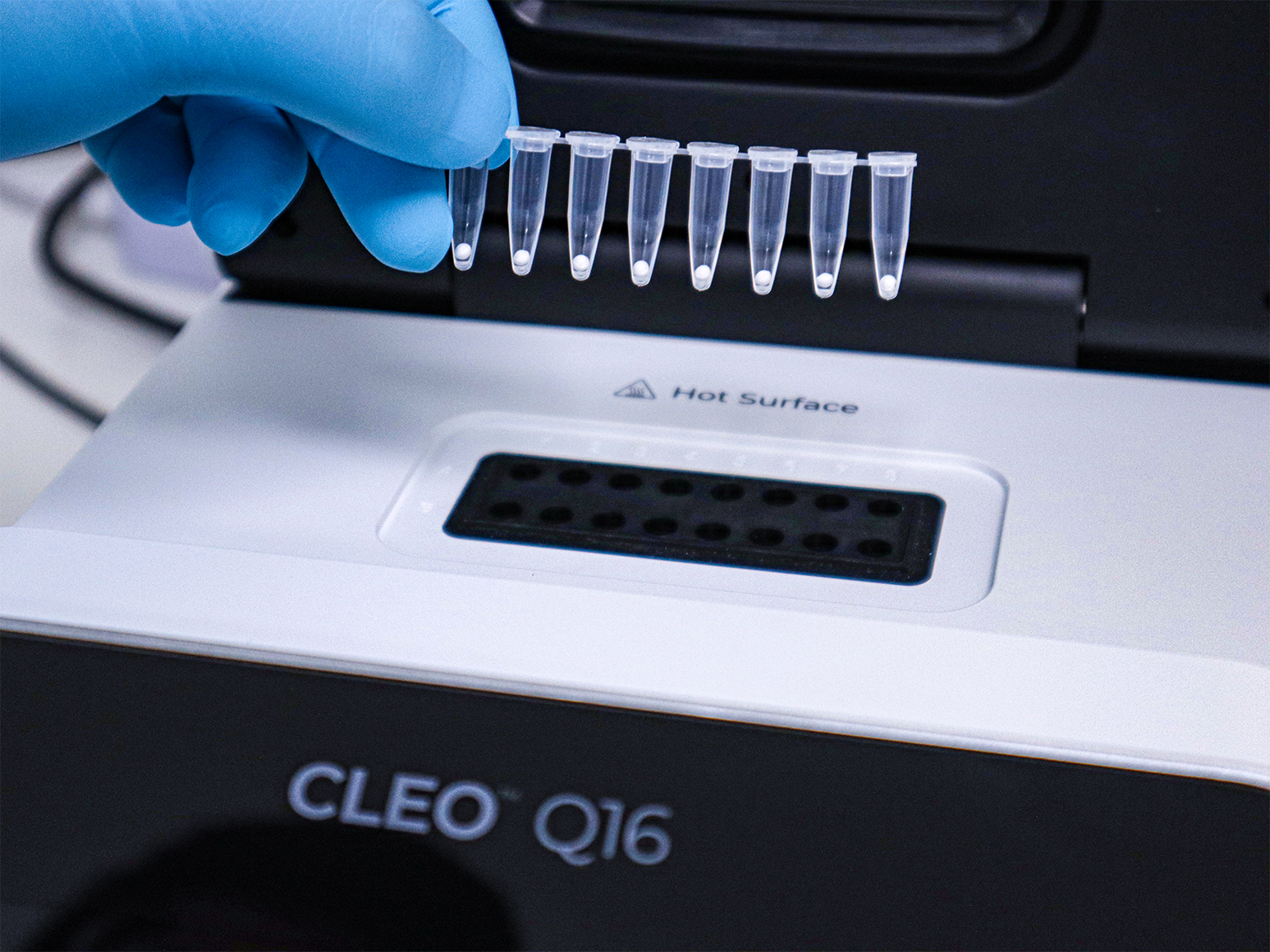

      • Using CLEO Q16, the PCR setup can be easily set up with QR code recognition, and test results can be automatically analyzed based on AI, allowing for quick and intuitive confirmation of results.
    • Specifications
      Principle of Procedure Real time PCR

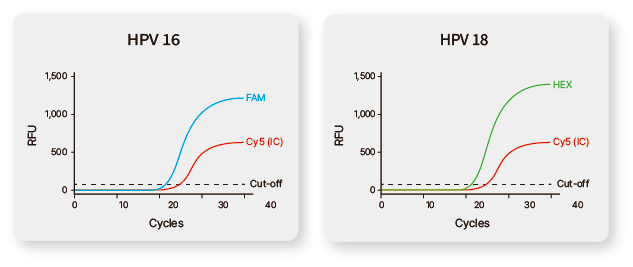

      Target FAM for HPV 16, HEX for HPV 18, Cy5 for the internal control
      Tests for Package 96 tests/kit
      Reagent Type Lyophilized (Freeze-dried) in PCR tube
      Limit of Detection (LoD) 0.5 copies/μL
      Precision Respectively detect the reference specimen of high and low concentrations in different time ranges-10 times, and the precision values of intra-assay and inter-assay Ct values were all <2%.
      Specificity • Analytical specificity : 100 % • Clinical Sensitivity : #16 (92.37%), #18 (95.00%), #HR (91.63%) • Clinical Specificity : #16 (99.48%), #18 (99.70%), #HR (96.59%)
      Sample Types Cervical, Vaginal, Genital specimens
      Shipping/Storage Shipping and Storage at room temperature for 12 months
      Compatible Instruments CLEO™ Q16 (Wizbiosolutions), CFX96 (Bio-Rad), QuantStudio™ 5 (ThermoFisher)
    • Technical Data
      Technical Image

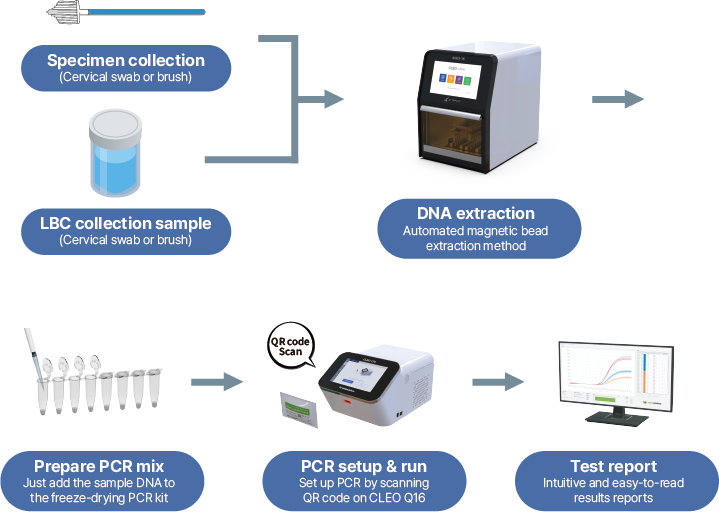

    • Protocol
      WizDx™ CrystalMix HPV 16/18
    • Storage & Shipping
      • Room temperature (4 - 25℃)
