    WizDx™ CrystalMix DENV

    Technical Data Image
    WizDx™ CrystalMix DENV
    WizDx™ CrystalMix DENV is an in vitro diagnostic real-time RT-PCR test for the qualitative detection of RNAs in plasma or serum specimens of patients.
    Catalog Package
    DX1228 96 tests

  • Related Products

    • Overview
      • Simple procedures for Dengue virus diagnosis with ready-to-use reagents that assure high specificity & sensitivity.
      • Hot-start PCR technology minimizes non-specific PCR reactions and increases specificity.
      • Ready-to-use freeze-dried PCR mix allows convenient storage and a minimal test procedure.
      • Internal cellular control helps prevent false negatives.

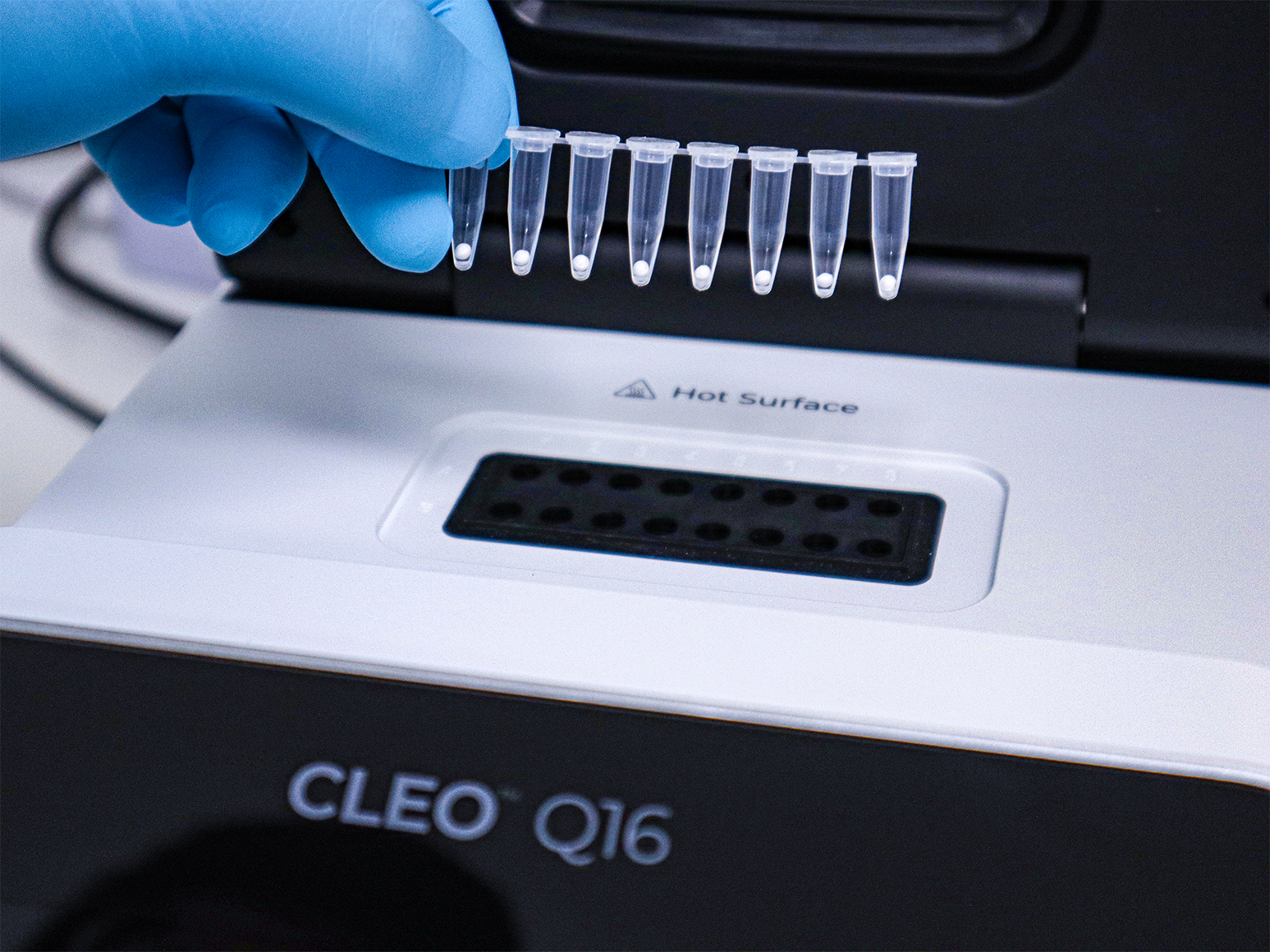

      • Using CLEO Q16, the PCR setup can be easily set up with QR code recognition, and test results can be automatically analyzed based on AI, allowing for quick and intuitive confirmation of results.
    • Specifications
      Principle of Procedure Real-time PCR
      Target FAM for the sample, CY5 for ther internal control
      Tests for Package 96 Tests/kit

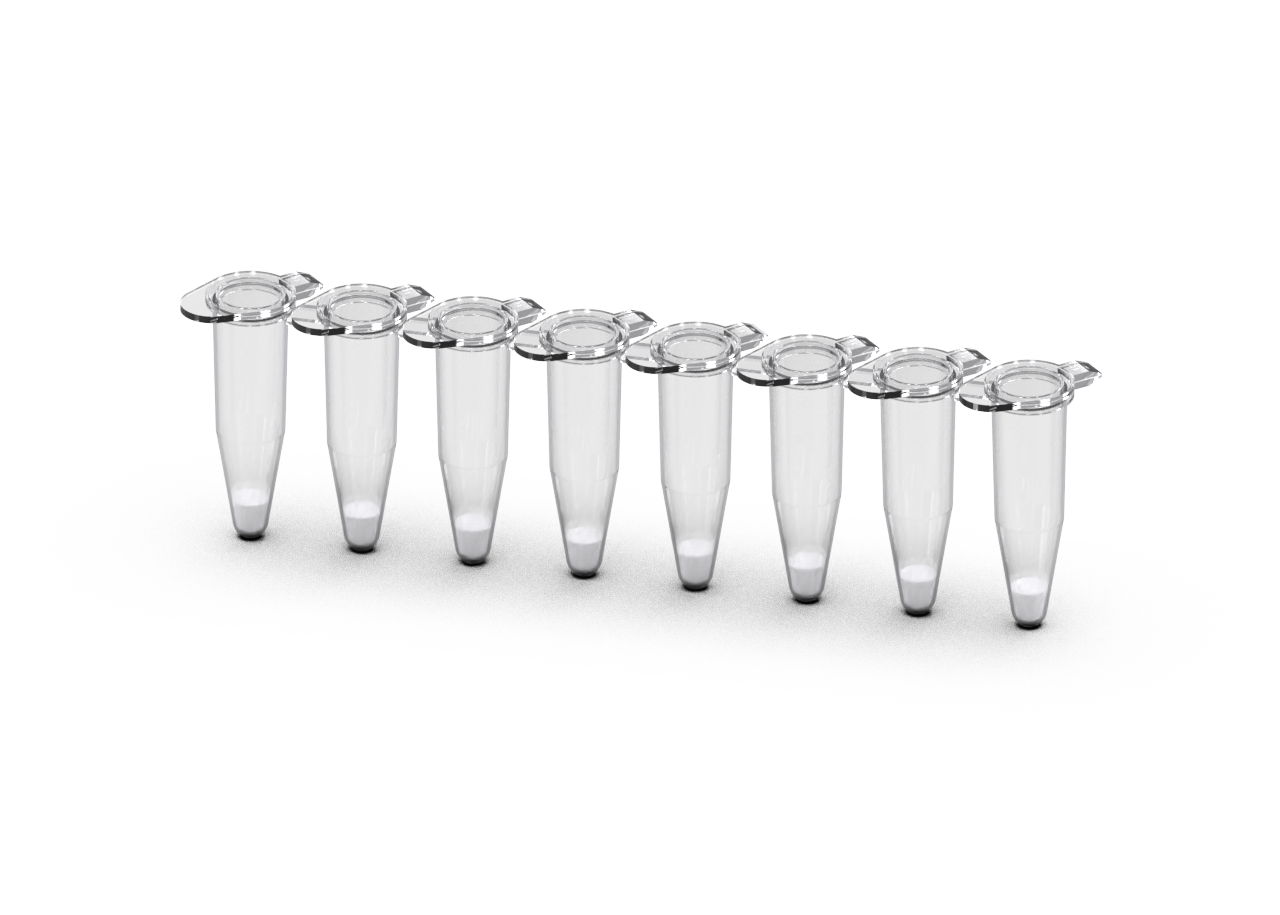

      Reagent Type Lyophilized (Freeze-dried) in PCR tube
      Limit of Detection (LoD) DENV1: 1X100 copies/μL, DENV2: 3X100 copies/μL, DENV3: 2X100 copies/μL, and DENV4: 3X100copies/μL.
      Precision Respectively detect the reference specimen of high and low concentrations in different time ranges-10 times, and the precision values of intra-assay and inter-assay Ct values were all <5%.
      Specificity Analytical specificity was evaluated for cross-reactivity by examining a total of 45 related pathogens and microorganisms, including viruses that cause vector-borne diseases. The test was repeated three times and showed no cross-reactivity.
      Sample Types Serum and plasma (EDTA)
      Shipping/Storage Shipping and Storage at room temperature for 12 months
      Compatible Instruments CLEO™ Q16 (Wizbiosolutions), CFX96(Bio-Rad)

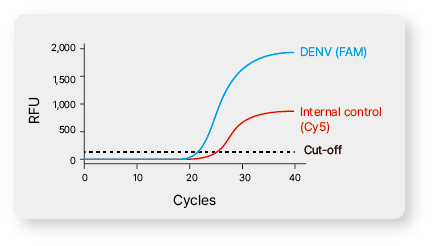

    • Technical Data
      Technical Image

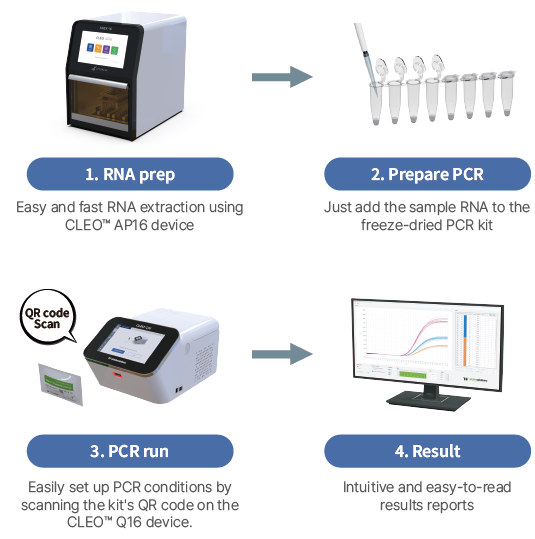

    • Protocol
      WizDx™ CrystalMix DENV
    • Storage & Shipping
      • Room temperature (4 - 25℃)
