    EuDx™ MDR-TB Detection Kit

    Technical Data Image
    EuDx™ MDR-TB Detection Kit
    The EuDx™ MDR-TB Detection Kit is an in vitro diagnostic reagent intended for the qualitative detection of Mycobacterium tuberculosis complex and multidrug-resistant M. tuberculosis (MDR-TB) in human sputum and cultured specimens. The assay is performed using real-time polymerase chain reaction (PCR) to simultaneously detect the M. tuberculosis complex and genetic mutations associated with resistance to rifampicin (RIF) and isoniazid (INH). According to Sensitivity; The assay demonstrates positive detection rates of over 95% at 100 copies for all 12 target mutations. Furthermore, key mutations such as rpoB S531L, katG S315T, and inhA-15C are reliably detected at as low as 50 copies. According to Specificity; No cross-reactivity was observed with genomic DNAs from 13 non-tuberculous mycobacterial (NTM) species and 14 other pathogenic microorganisms. Additionally, common PCR inhibitors, including human genomic DNA and certain antibiotics, did not interfere with assay performance.

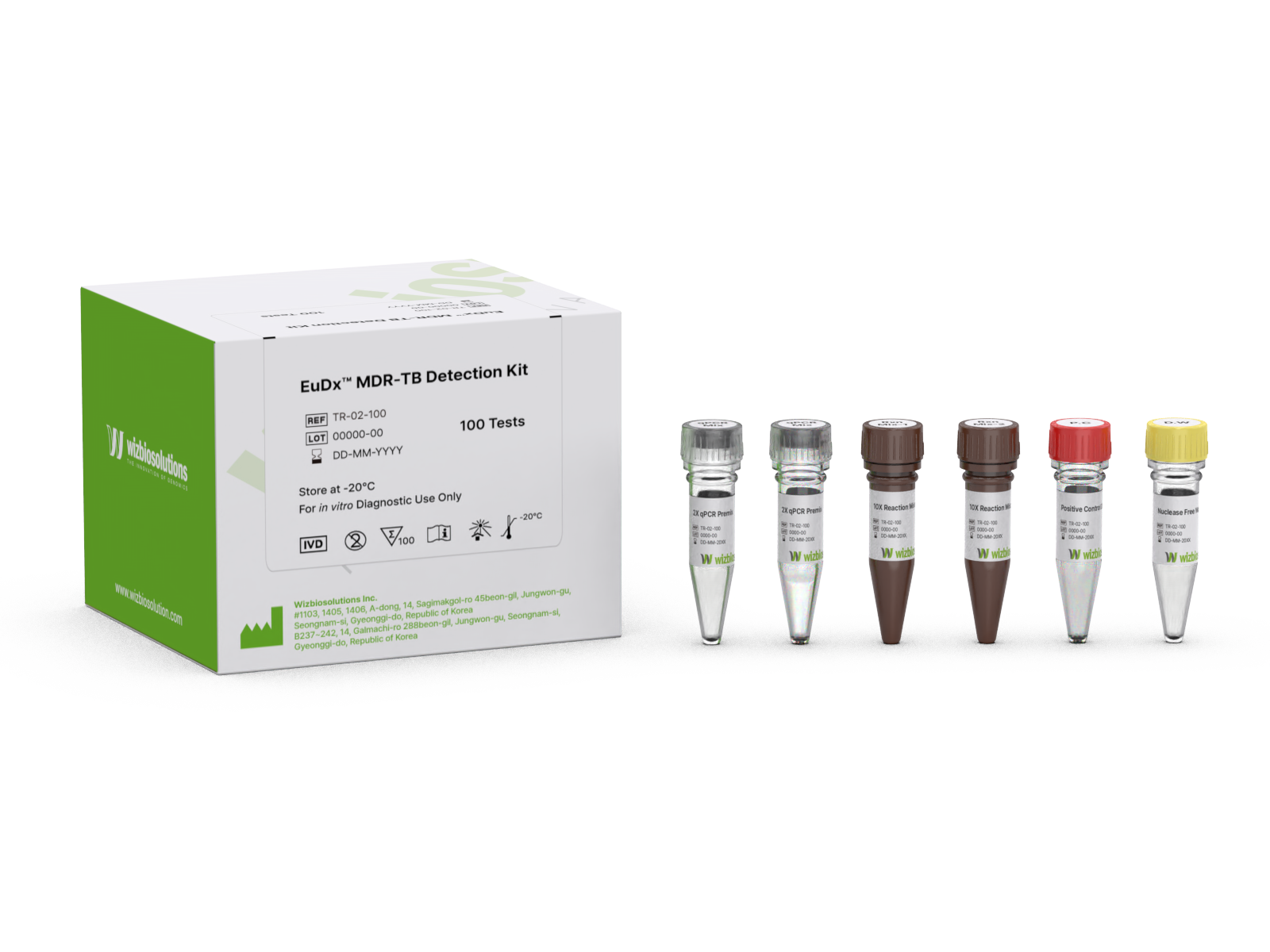

    Catalog Package
    TR-02-100 100 tests
    • Overview
      • Simultaneous and accurate detection of drug-resistant Mycobacterium tuberculosis, including resistance to rifampicin (RIF) and isoniazid (INH), enables rapid and reliable diagnosis of MDR-TB.
      • Uracil-DNA glycosylase (UDG) system is incorporated to prevent carryover contamination from previous PCR reactions.
      • Hot-start PCR technology minimizes non-specific amplification and enhances assay specificity.
      • Convenient testing procedure with ready-to-use PCR mixes.
      • Internal cellular control ensures test validity and helps prevent false-negative results.
      • Long shelf life: 15 months.
      • MFDS approval.
    • Specifications
      Principle of Procedure Multiplex Real-time PCR
      Target FAM (INH), HEX (RIF), ROX (MTB), Cy5 (Internal control)
      Tests for Package 100 Tests/kit
      Reagent Type Ready-to-use premixv
      Limit of Detection (LoD) 100 copies/rxn for MTB, 50 copies/rxn for , 100 copies/rxn for
      Precision MTB Sensitivity: 92.88%, Specificity 99.48% MDR-RIF Sensitivity: 97.14%, Specificity 98.04% MDR-INH Sensitivity: 94.12%, Specificity 97.62%
      Sample Types Sputum, sputum sediment specimens.
      Shipping/Storage Storage at -20 for 18 months
      Compatible Instruments CLEO™ Q16 (Wizbiosolutions), CFX96 (Bio-Rad), ABI7500

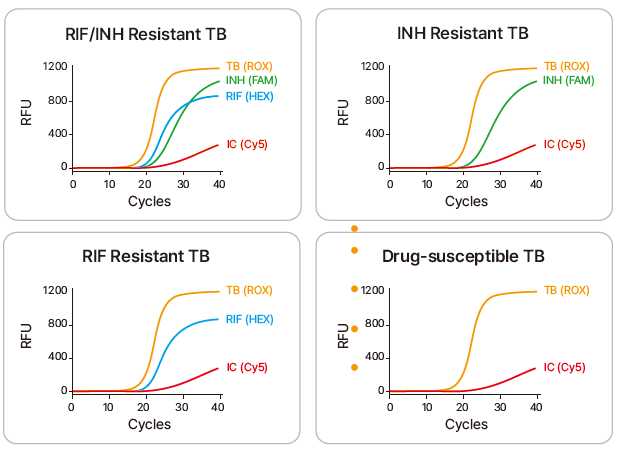

    • Technical Data
      Technical Image
    • Protocol
      EuDx™ MDR-TB Detection Kit
