    CLEO™ AP16

    Technical Data Image

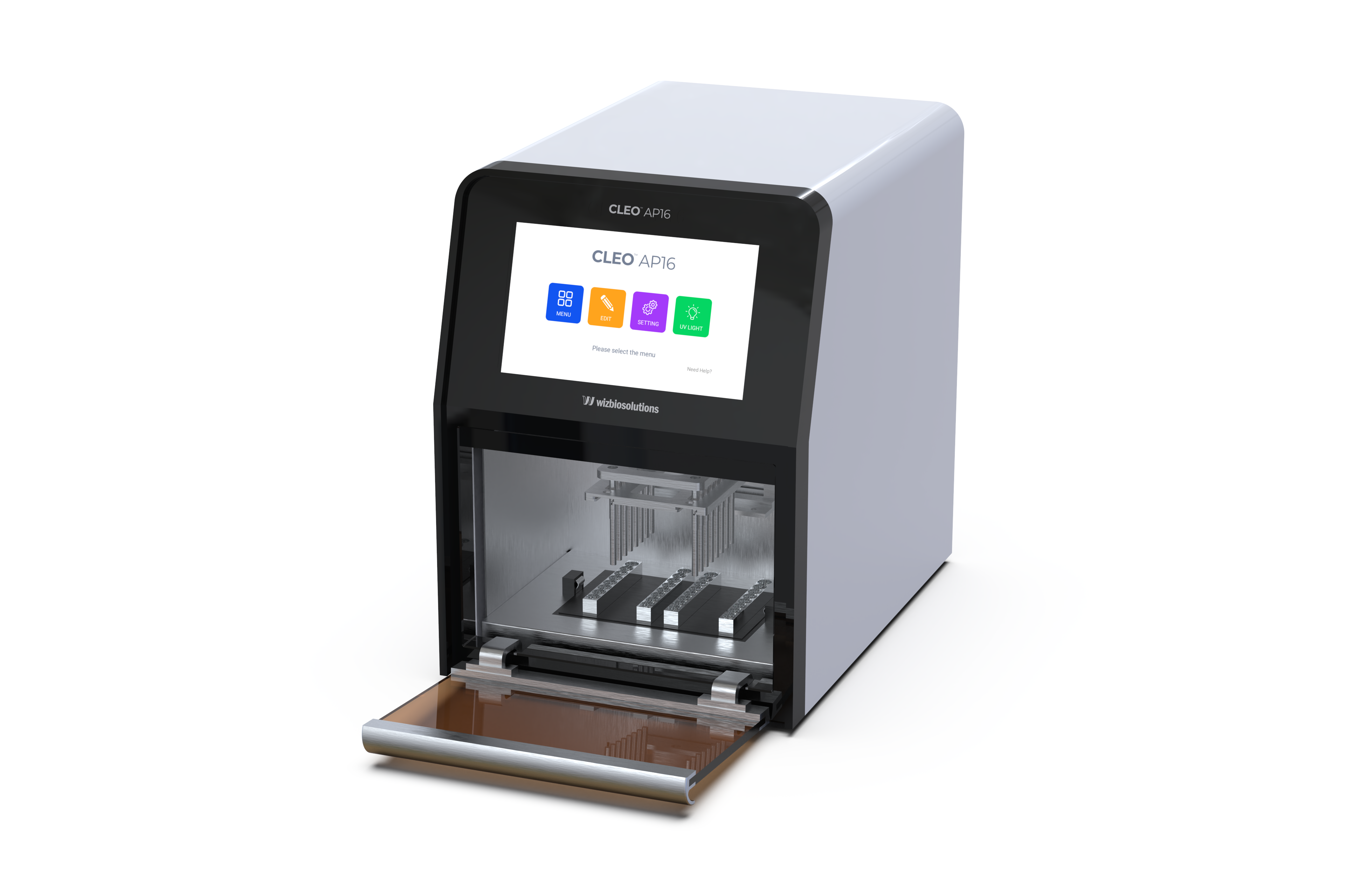

    CLEO™ AP16
    The CLEO™ AP16 system delivers fully automated DNA and RNA extraction with magnetic particle technology. Capable of processing up to 16 samples simultaneously, it provides a fast, reliable, and hands-free solution to streamline your laboratory workflow and ensure consistent, high-quality results. Compact Design: Ideal for personal laboratories and point‑of‑care use Fast Extraction: Processes samples in just 15–40 minutes Built‑in Software: Seamless, user‑friendly operation Fully Automated: Minimal hands‑on time required High Throughput: Up to 16 samples per run Magnetic Bead Technology: Ensures efficient nucleic acid extraction UV Sterilization: Added protection against contamination Ready‑to‑Use Cartridges: Pre‑filled for maximum convenience MFDS Approval and CE-IVD Marking
    Catalog Package
    CL2016 1 system
    • Overview
      • Number of samples:- 1 to 16 samples
      • Extraction method:- Magnetic bead-based extraction
      • Sample volume:- 200 - 300 μL
      • Extraction time:- 15 - 60 min.
      • Operating system:- Android OS
      • Display:- 7-inch full-color HD LCD capacitive touch screen
      • Protocol storage:- Pre-loaded protocols
      • Input power / Max power:- 100 - 240 VAC (50/60 Hz) / 500W
      • Dimensions (LxWxH):- 326 × 229 × 310 mm
      • Weight:- 8.6 kgs
    • Specifications
      Number of samples 1 to 16 samples
      Extraction method Magnetic bead-based extraction
      Sample volume 200 - 300 μL
      Extraction time 20 - 30 min.
      Operating system Android OS
      Display 7-inch full-color HD LCD capacitive touch screen
      Protocol storage Pre-loaded protocols
      Input power / Max power 100 - 240 VAC (50/60 Hz) / 500W
      Noise ≤ 60 dB
      Dimensions (LxWxH) 326 × 229 × 310 mm
      Weight 8.6 kgs
    • Technical Data
      Technical Image

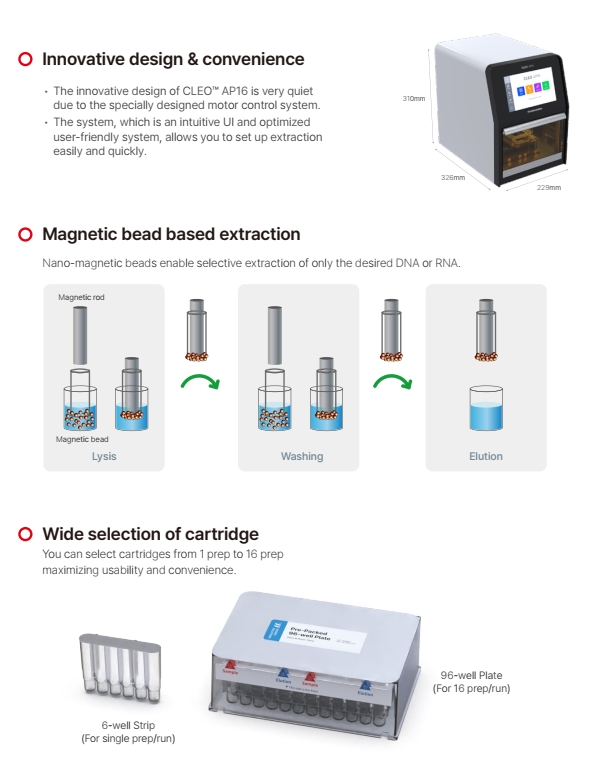

    • Advantages
      CLEO™ AP16
